Region Growing Segmentation in Image Processing

Key Highlights

• Region growing segmentation starts from user-defined “seed” points and expands to include similar neighboring pixels, forming coherent regions.

• This method is especially useful for segmenting complex or irregular structures, such as in medical imaging, where precision is critical.

• Key steps include seed selection, defining similarity criteria, and determining when to stop growing the region.

Before we dive into the nuts and bolts of region growing segmentation, let’s set the stage. If you’ve ever tried to separate different objects in an image—maybe to identify organs in a medical scan or isolate features in a satellite photo—you know that traditional methods like thresholding can leave you with scattered, isolated pixels that don’t quite capture the full picture. Region growing segmentation was developed to address exactly this problem, offering a more robust way to group pixels into meaningful, connected regions.

(toc) #title=(Table of Content)

What Is Region Growing Segmentation?

At its core, region growing segmentation is about grouping pixels that share similar properties. Instead of just slicing an image based on a single threshold, this method starts with one or more “seed” pixels. From there, it checks neighboring pixels—if they’re similar enough (according to a criterion you set), they get added to the region. This process repeats, expanding outward like a ripple, until no more similar neighbors are found.

This approach is sometimes called region-based segmentation or seeded region growing. The underlying assumption is simple: pixels that are next to each other and look alike probably belong together.

Why Not Just Use Thresholding?

Thresholding is fast and easy, but it’s not always reliable. It can leave behind isolated pixels or miss subtle boundaries, especially in images with noise or complex textures. Region growing, on the other hand, builds up regions in a more controlled, connected way. You end up with coherent regions that are less likely to be fragmented or noisy.

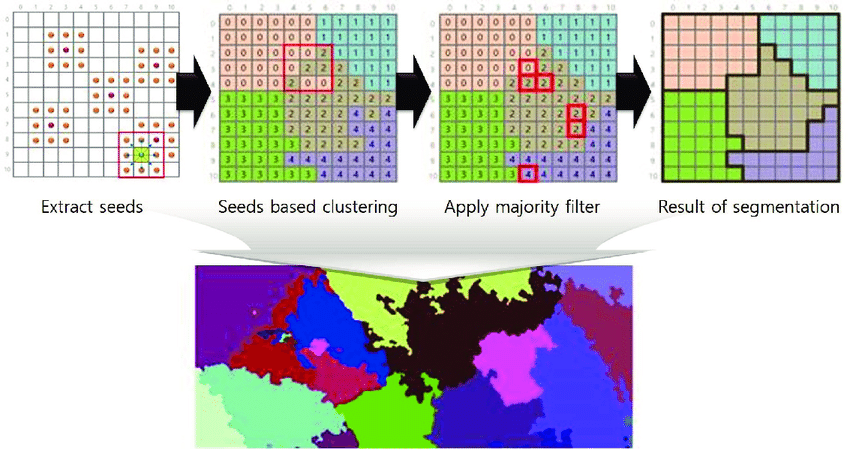

How Does Region Growing Work?

Let’s break down the process into clear steps. I find it helpful to think of it as a three-part routine:

Step	What Happens
Seed Selection	Pick one or more starting pixels—manually or automatically.
Growth Criteria	Define what makes a pixel “similar” (e.g., intensity, color, texture).
Termination Rule	Decide when to stop growing (no more similar neighbors, region size, etc.).

1. Seed Selection

The first move is to pick your seed points. You can choose them by hand (good for interactive tools) or let an algorithm pick them automatically. The number and placement of seeds can influence the final segmentation, so it’s worth considering what you want to achieve.

2. Growth Criteria

Once you have your seeds, you need a rule for what counts as “similar.” This could be:

• Pixel intensity (for grayscale images)

• Color value (for color images)

• Texture or pattern

• A custom feature you define

For example, you might say: “Include any neighboring pixel whose intensity differs from the seed by less than 10.” This criterion can be as strict or as loose as you need, depending on the application.

3. Termination Rule

Finally, you need to decide when to stop growing the region. Common stopping points include:

• No more neighboring pixels meet the similarity criterion.

• The region reaches a certain size.

• A maximum allowed difference is exceeded.

The process continues until every seed has grown as much as possible without violating the rules you’ve set.

A Simple Example

Suppose you’re segmenting a grayscale image of a brain scan. You pick a seed inside a blood vessel. Your criterion: include any pixel within 5 intensity units of the seed. The algorithm checks each neighbor, adds those that qualify, and repeats the process for each new addition. Eventually, you end up with a region that matches the vessel, even if it twists and turns through the image.

Applications of Region Growing

Region growing is especially valuable in fields where precision matters and objects have irregular shapes. Here are a few real-world uses:

• Medical Imaging: Isolating organs, tumors, or blood vessels in MRI or CT scans.

• Remote Sensing: Identifying land cover types in satellite imagery.

• Industrial Inspection: Detecting defects or features in manufactured goods.

In medical imaging, for example, a radiologist might use region growing to segment the aorta from a CT scan. By placing a seed in the vessel and letting the algorithm expand based on intensity, the vessel can be cleanly separated from surrounding tissue—even if its shape is complex or the image is noisy.

Strengths and Limitations

Like any technique, region growing has its pros and cons.

Strengths

• Produces connected, coherent regions

• Handles irregular shapes and complex structures well

• Flexible—criteria can be tailored to the problem

Limitations

• Sensitive to seed selection—bad seeds can lead to poor results

• Can be slow for large images if not optimized

• May merge regions if the similarity criterion is too loose

Tips for Effective Region Growing

If you’re thinking of using region growing in your own work, here are a few pointers:

• Choose seeds wisely: If you can, place seeds in areas you know belong to the object of interest.

• Tune your criteria: Start with a tight similarity threshold and loosen it if the segmentation is too fragmented.

• Watch for leaks: If regions start merging that shouldn’t, tighten your similarity rule or add additional stopping conditions.

Comparing Region Growing to Other Segmentation Methods

Here’s a quick table comparing region growing to some other common segmentation techniques:

Method	Strengths	Weaknesses
Thresholding	Fast, simple	Can produce scattered regions
Region Growing	Connected, flexible, handles complexity	Sensitive to seeds, slower
Clustering (K-means)	Finds groups in feature space	May ignore spatial relationships
Edge Detection	Finds boundaries	May miss subtle regions

Final Thoughts

Region growing segmentation is a practical, flexible tool for dividing images into meaningful regions. It shines when you need to capture complex shapes or ensure that segmented regions are truly connected. While it requires careful setup—especially in choosing seeds and similarity criteria—it’s a technique that delivers reliable results in challenging scenarios, from medical diagnostics to industrial inspection.

If you’re new to image segmentation, give region growing a try. Start simple, experiment with different seeds and criteria, and see how it can help you extract more value from your images.
