VI Characteristics of PN Junction Diode

• The VI characteristics of a PN junction diode reveal how current and voltage behave in both forward and reverse bias conditions.

• Understanding the depletion region is essential for grasping why current flows (or doesn’t) under different biases.

• Breakdown in reverse bias can lead to a sudden surge in current, which may damage the diode if not controlled.

When I first started learning about electronics, the PN junction diode felt like a mysterious black box. It’s just two pieces of semiconductor material joined together—P-type and N-type—but the way it responds to voltage is fascinating. The heart of this behavior lies in its VI characteristics, which show how current (I) and voltage (V) interact under different conditions. If you’re curious about how a diode works in both forward and reverse bias, and what happens to the current as you tweak the voltage, you’re in the right place.

(toc) #title=(Table of Content)

What Happens at the PN Junction?

Let’s start at the atomic level. When P-type and N-type materials are fused together, something interesting happens at the boundary—the junction. The P-type side is rich in holes (positive charge carriers), while the N-type side has plenty of electrons (negative charge carriers). As soon as these two materials meet, electrons from the N side rush to fill holes on the P side. This process creates a region right at the junction called the depletion region.

Here’s what’s going on in that region:

Side	What’s Happening?	Resulting Ions
P-type	Gains electrons (fills holes)	Negative ions form
N-type	Loses electrons (fills holes)	Positive ions form

The result? A built-in electric field that resists the flow of more charge carriers. This is why, even if you connect the diode to a circuit, current doesn’t immediately flow. The depletion region acts as a barrier.

VI Characteristics in Forward Bias

Now, let’s talk about forward bias. This is when you connect the positive terminal of a battery to the anode (P side) and the negative terminal to the cathode (N side). Here’s what happens:

• The external voltage pushes electrons in the N region towards the junction and holes in the P region towards the junction.

• The depletion region becomes narrower as the applied voltage increases.

• Once the applied voltage exceeds a certain value (called the threshold voltage or cut-in voltage), the barrier is overcome and current starts to flow.

For a silicon diode, this threshold voltage is typically around 0.7 volts. For a germanium diode, it’s about 0.3 volts.

Here’s a quick summary in table form:

Diode Material	Threshold Voltage (V)
Silicon	0.7
Germanium	0.3

When you plot the VI characteristic curve for forward bias, you’ll notice that:

• For voltages below the threshold, current is almost zero.

• As soon as you cross the threshold, current increases rapidly with a small increase in voltage.

This sharp rise in current is what makes diodes so useful for rectification and switching applications.

VI Characteristics in Reverse Bias

Reverse bias is the opposite setup: the positive terminal is connected to the cathode (N side), and the negative terminal to the anode (P side). Here’s what changes:

• The depletion region widens, making it even harder for charge carriers to cross the junction.

• Ideally, no current should flow. In reality, a tiny current—called reverse saturation current—does flow due to minority charge carriers. It’s usually so small that it can be ignored for most practical purposes.

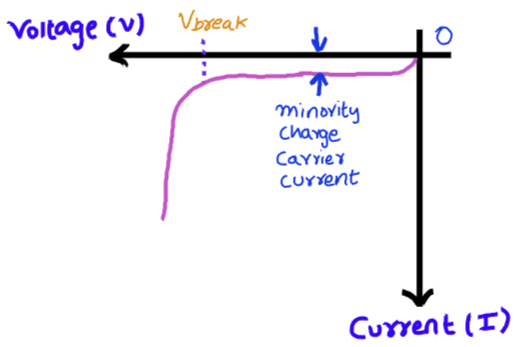

But there’s a catch. If you keep increasing the reverse voltage, you’ll eventually reach a point called the breakdown voltage. Beyond this, the current shoots up dramatically. This can permanently damage the diode unless it’s designed to handle breakdown (like a Zener diode).

A quick look at the behavior:

Bias Type	Depletion Region	Current Flow	Special Notes
Forward Bias	Narrows	High (after Vth)	Threshold must be crossed
Reverse Bias	Widens	Very low	Breakdown possible

Visualizing the VI Characteristics

Let’s put it all together with a simple description of the VI curve:

• Forward Bias Region: Starts flat (no current), then rises sharply after the threshold voltage.

• Reverse Bias Region: Stays flat (almost no current), then spikes dramatically at breakdown voltage.

If you were to sketch this on a graph, the forward bias curve would hug the voltage axis until the threshold, then shoot upwards. The reverse bias curve would stay near zero, then leap up at breakdown.

Why Does This Matter?

You might wonder why the VI characteristics of a PN junction diode are so important. Here’s why:

• Rectification: Diodes allow current to flow in only one direction, making them essential in converting AC to DC.

• Protection: In circuits, diodes can protect sensitive components by blocking unwanted current flow.

• Voltage Regulation: Zener diodes use the breakdown region for voltage regulation.

Key Points to Remember

• The depletion region is the gatekeeper for current flow in a PN junction diode.

• Forward bias means narrowing the depletion region and allowing significant current once the threshold voltage is crossed.

• Reverse bias widens the depletion region, allowing only a minuscule current—until breakdown occurs.

• The VI characteristics graph tells the whole story: a sharp knee in forward bias, a flat line in reverse, and a sudden spike at breakdown.

Common Questions

What happens if I exceed the breakdown voltage in reverse bias?
The diode may be permanently damaged unless it’s a special type like a Zener diode, which is designed to operate in breakdown.

Why is the threshold voltage different for silicon and germanium diodes?
It’s due to the different energy band structures of the materials. Silicon requires more energy to overcome the barrier than germanium.

Can current flow in both directions through a diode?
Not under normal circumstances. That’s the point of the diode—to allow current in one direction (forward bias) and block it in the other (reverse bias).

Final Thoughts

Understanding the VI characteristics of a PN junction diode is fundamental for anyone diving into electronics. Whether you’re designing a power supply or just curious about how your phone charges, these concepts are everywhere. Next time you see a tiny black cylinder with a silver stripe on a circuit board, you’ll know exactly what’s happening inside.

If you have questions or want to see more examples, please comment down below. And don’t hesitate to experiment with different voltages and see the VI characteristics for yourself—just watch out for that breakdown voltage!
